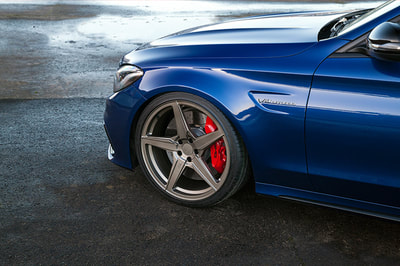

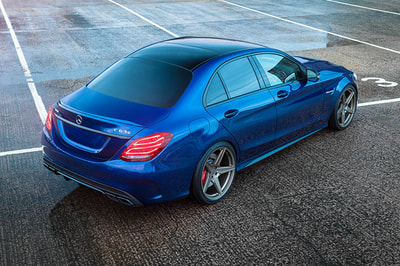

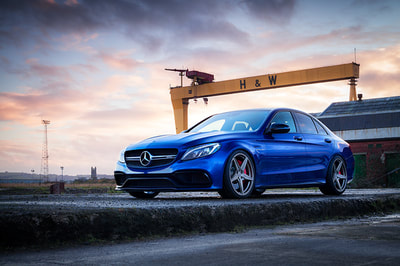

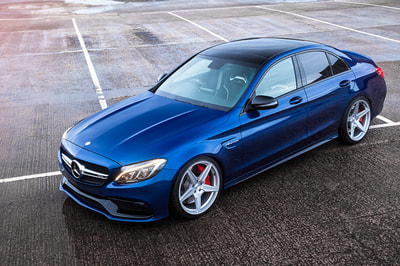

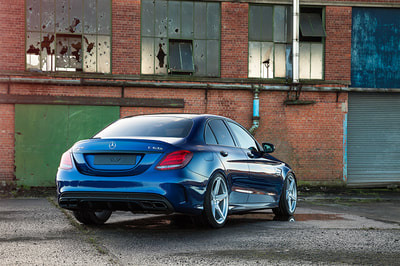

FFR5

A LIGHTWEIGHT INTRICATE 5 SPOKE DESIGN WITH MULTI-LEVEL TAPERED SPOKES EMPHASISING THE WHEELS DETAIL, SIZE AND STYLE.
​
The FFR5 was conceived to maximise the lightweight properties of the combined Motioncast™ and flow form processes.

Styled specifically to enhance mid to large sized modern high performance vehicles with a contemporary aesthetic such as, Audi, BMW, Lexus and Mercedes.

STUD PATTERNS
​
BMW - 5 x 120
Audi/VW/Mercedes - 5 x 112
Lexus/Nissan GTR - 5 x 114.3

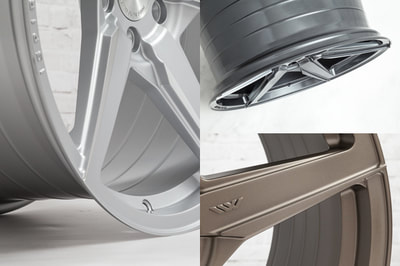

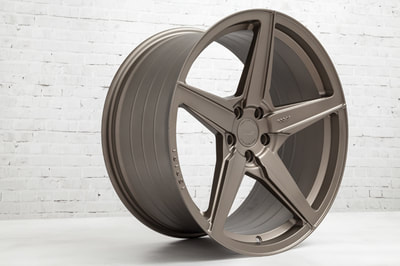

​AVAILABLE FINISHES

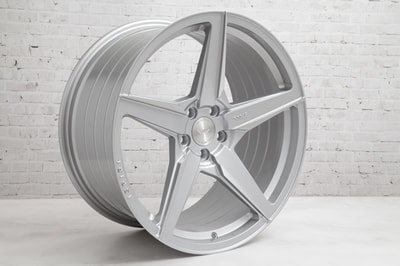

Pure Silver Brushed

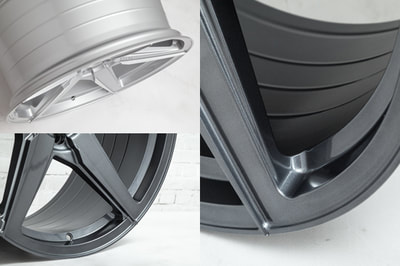

Carbon Graphite

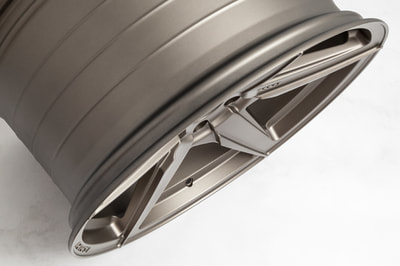

Matt Carbon Bronze

SPECIFICATIONS

SIZE
20 X 8.5
20 X 9
20 X 10
20 X 10.5
20 X 11
21 X 9
21 X 10.5​

CONCAVE
PC
PC
DC
DC
UC
PC
DC​

WEIGHT
11.3KG
11.5KG
10.9KG
11.3KG
11.9KG
12.7KG
12.7KG

MAX LD
705KG
705KG
705KG
705KG
705KG
705KG
705KG

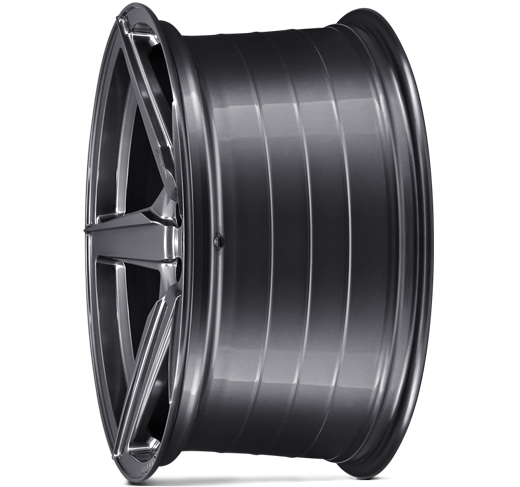

CONCAVE OPTIONS

Performance Concave (PC)

Designed for maximum brake clearance suitable for larger brakes.

Concave Depth

20" - 40mm
21" - 36mm

Deep Concave (DC)

Front & rear wheel option in
specific widths.

Concave Depth

20" - 74mm
21" - 70mm

Deep Concave (DC)

The deepest concave option for rear wheel application

Concave Depth

20" - 102mm
