FFR1D

A LIGHTWEIGHT DIRECTIONAL MULTI SPOKE WHEEL WITH PAIRED ‘DIRECTIONAL’ SPOKES EXTENDING TO THE OUTER LIP TO EMPHASISE THE RIM SIZE, A SIGNATURE DETAIL THAT RUNS THROUGHOUT THE ISPIRI WHEELS RANGE.
​
The FFR1D was conceived to maximise the lightweight properties of the combined Motioncast™ and flow form processes.

Styled specifically to compliment modern performance vehicles with a technological and contemporary aesthetic such as BMW, VAG, Porsche and Mercedes.

STUD PATTERNS
BMW - 5 x 120
Audi/VW/Mercedes - 5 x 112

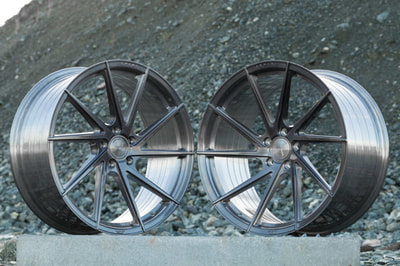

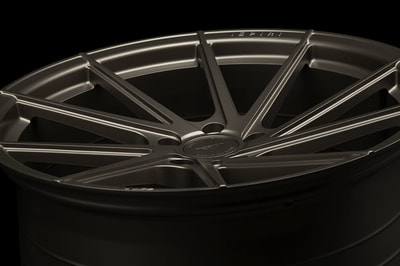

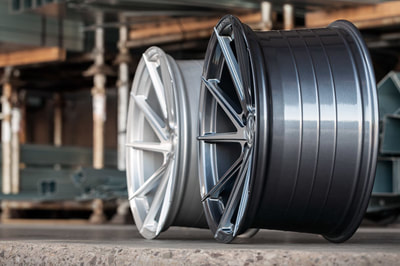

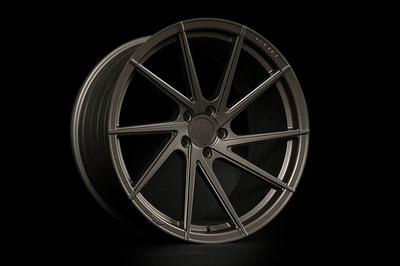

​AVAILABLE FINISHES

Pure Silver Brushed

Carbon Graphite

Matt Carbon Bronze

Full Brushed Carbon Titanium

SPECIFICATIONS

SIZE
19 X 8.5
19 X 9
19 X 9.5
19 X 10
20 X 8.5
20 X 9
20 X 9.5
20 X 10
20 X 10.5
20 X 11
21 X 9
21 X 10.5​

CONCAVE
PC
PC
DC
DC
PC
PC
PC
DC
DC
DC
PC
DC

WEIGHT
10.4KG
10.9KG
10.1KG
10.5KG
10.3KG
11.1KG
​10.2KG
10.4KG
11.1KG
TBCKG
12.6KG
12.7KG

MAX LD
690KG
690KG
690KG
690KG
690KG
690KG
705KG
690KG
690KG
TBCKG
735KG
735KG

CONCAVE OPTIONS

Performance Concave (PC)

Designed for maximum brake clearance suitable for larger brakes.

Concave Depth

19" - 38mm
20" - 35mm
21" - 33mm

Deep Concave (DC)

Front & rear wheel option in
specific widths.

Concave Depth

19" - 63mm
20" - 67mm
21" - 63mm
